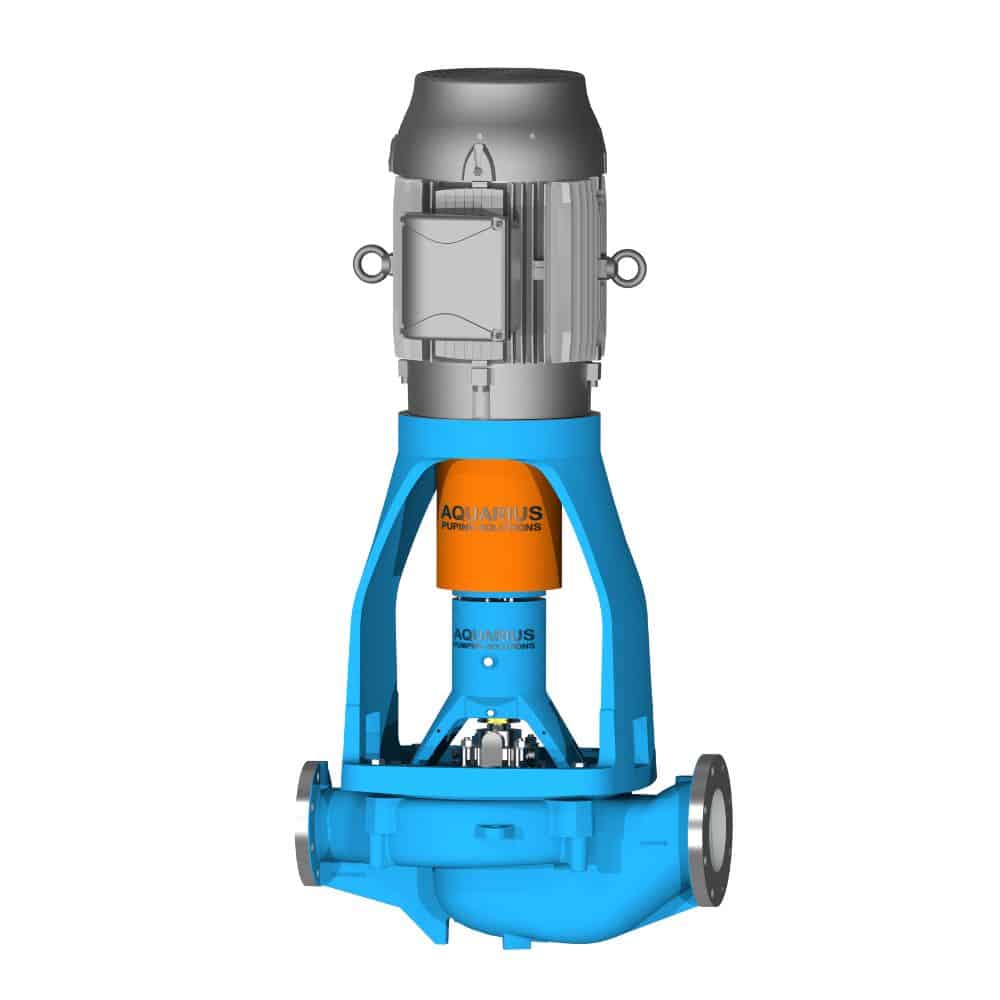

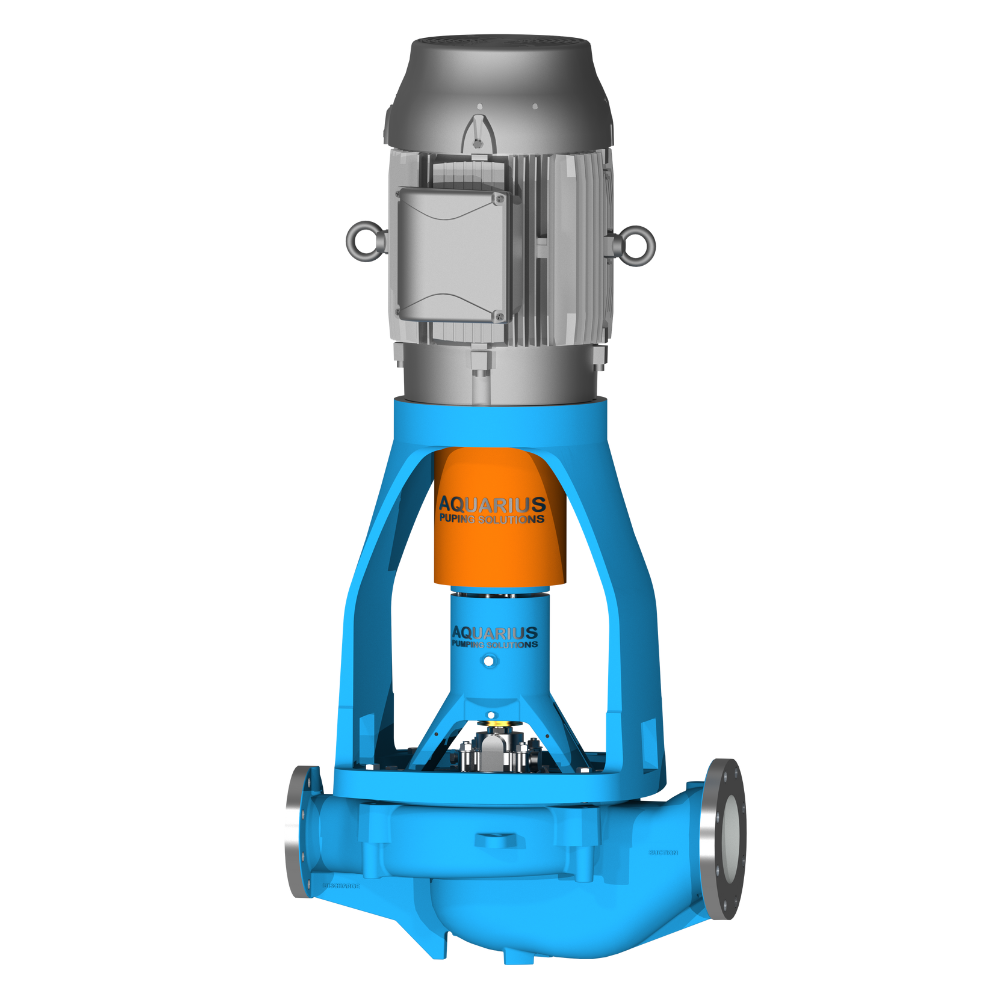

Aquarius A996 Series comply with ASME/ANSI B73.2M Standard Vertical In-Line Volute Casing Design.

Aquarius A996 Series is Directly interchangeable with reputed ITT Goulds© 3996 Series and many other ANSI Pump Manufacturers’ ANSI Vertical-Inline Pump Series.

Aquarius A996 Vertical In-Line Pump Series can be used in variety of Low on installation space Process Applications as it is having options in MOC of wetted parts like Carbon Steel, SS316, Cd4MCuN, Alloy20, Monel, Nickel, Hastelloy C276, Titanium, etc.

Various industries like Petrochemical, Chemical, Primary Metal, Pharma, Food & Beverages, etc. can use Variety of Sealing options and All API Sealing Plans in Aquarius A996 Vertical In-Line Process Pump Series.

A196 series ANSI Centrifugal pumps need enough space for installation and it requires pipe alignment work on the field, for eliminating all these issue Aquarius A996 Vertical In-Line Pumps are Customer’s the most preferred choice.

Category: Tag:

Specifications

Capacities            : Up to 1400 GPM (318 m³/h)

Heads                   : Up to 700 feet (213 m)

Temperatures    : Up to 500° F (260° C)

Pressures            : Up to 375 PSIG (26 bar)

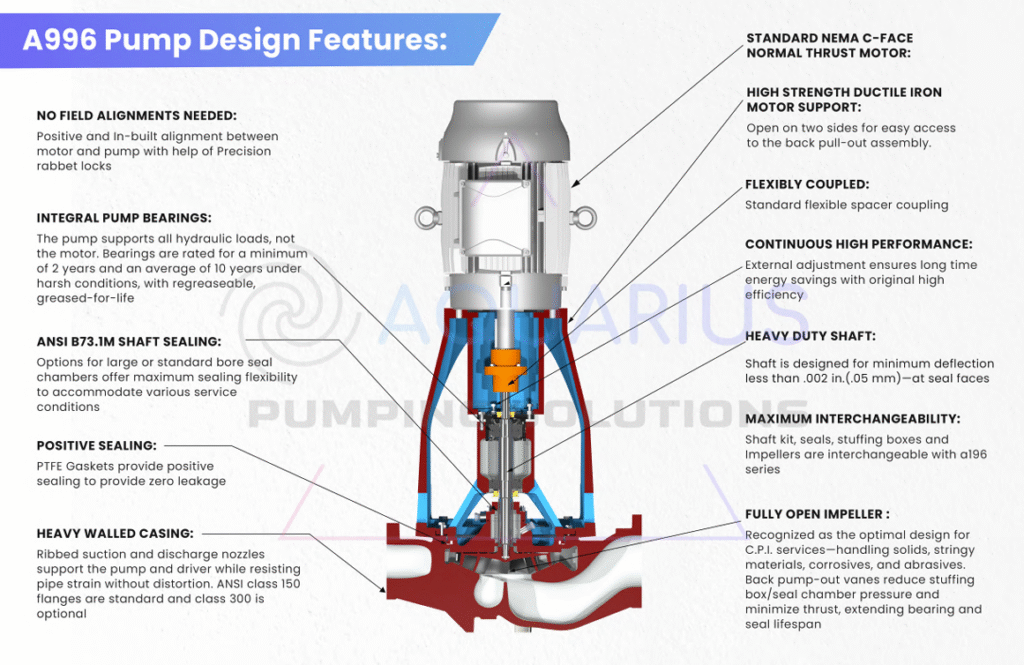

Pump Design Features

A996 – The Superior In-Line Design

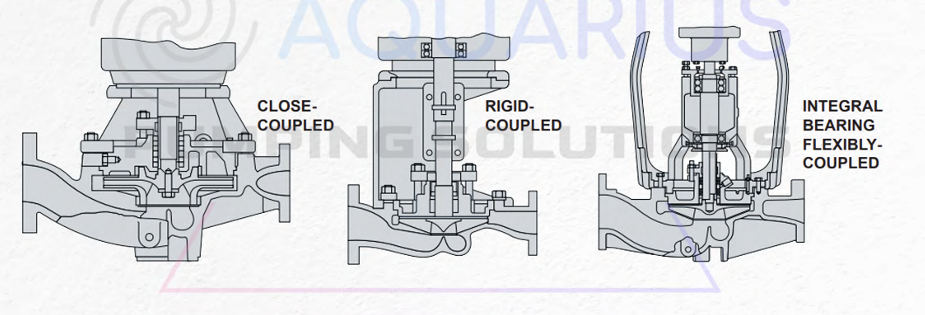

  • In-line pump configurations are available in multiple designs, including close-coupled, rigid-coupled, and flexibly-coupled models with integral bearings. Among these, only the flexibly-coupled design—exemplified by the A996—offers a no-compromise engineering approach, delivering superior alignment, extended bearing life, and enhanced serviceability under demanding operating conditions.
  • Close-coupled configurations present maintenance limitations due to restricted access to critical components, whereas rigid-coupled designs typically incorporate extended, unsupported shafts that are susceptible to runout, deflection, and dynamic imbalance—factors that significantly compromise bearing and mechanical seal life expectancy.

Establishing Standards for Reliability



    • The A996 is engineered for maximum operational reliability, featuring an optimized shaft diameter and minimal overhang to extend mechanical seal and bearing service life. Precision-machined components ensure factory-set alignment between pump and motor, eliminating the need for on-site alignment procedures. The hydraulic and mechanical loads are managed entirely by the pump assembly, allowing for the use of readily available, standard C-face motors without the need for custom or reinforced motor designs

Space-Saving In-Line Design for Cost Efficiency

  • In-line pumps are gaining popularity among users due to their compact footprint and lower installation costs.
  • Installation is simplified by the in-line configuration, which allows the pump to be mounted directly within the piping system—similar to a valve—eliminating the need for baseplates or grouting. Factory-set alignment ensures no field alignment is required, while the rigid, close-coupled design maintains pump integrity and performance, remaining unaffected by pipe strain or thermal expansion-induced misalignment.

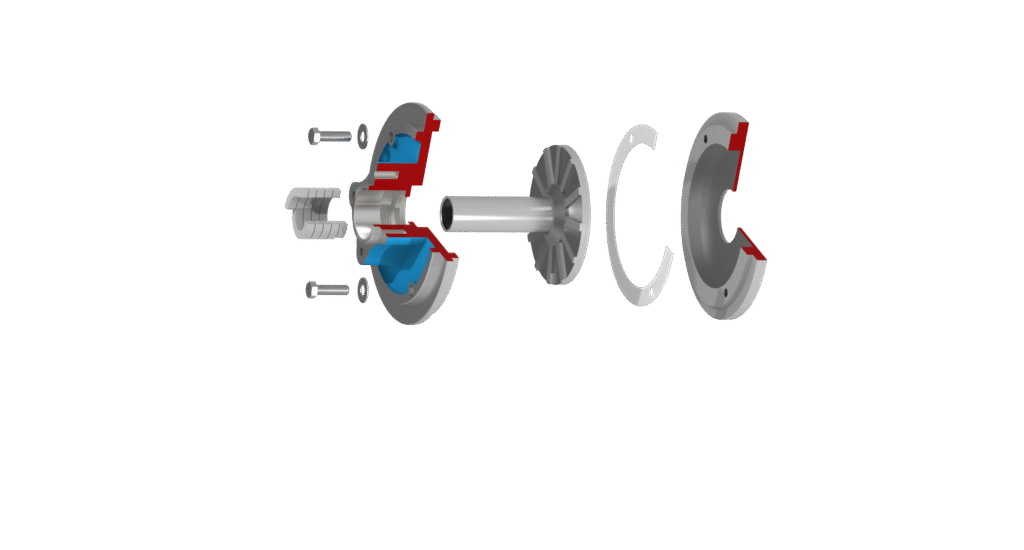

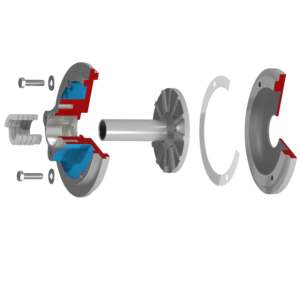

  Dynamic Sealing



  • Ideally used for Corrosives and Slurry Application
  • Eliminate need for Mechanical Seal
  • No need for seal cooling water
  • Utility cost is Reduced
  • Less Expensive than a Slurry Mechanical Seal



High Temperature Application

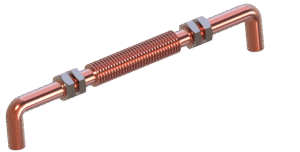

  • Finned Cooler:Directly cools oil for lower bearing temperature. Requires minimum cooling water.
  • Corrosion resistant construction. Recommended for temperature over 350°F (177°℃)

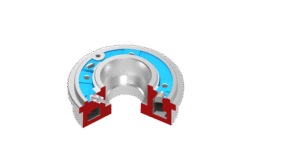

  • Jacketed Stuffing Box:Keep proper temperature control of sealing environment. Perfect for polymerizing liquids.

Ease of Maintenance

  • In-line Mounting: The pump installs directly within the pipeline, minimizing floor space requirements and simplifying system layout.
  • No Field Alignment Required: Factory-set alignment between the pump and motor eliminates the need for on-site coupling adjustments during installation.
  • Back Pull-Out Design: The rotating assembly can be removed without disturbing the piping, allowing for quick and efficient maintenance.
  • External Impeller Adjustment: Allows precise clearance setting between the impeller and wear surface without disassembling the pump, optimizing performance and extending component life.

Safety

  • ANSI B15.1 Coupling Guard: Equipped with a compliant coupling guard in accordance with ANSI B15.1 standards to ensure personnel protection from rotating components.
  • Ductile Iron Frame and Motor Support: Constructed with high-strength ductile iron for superior structural integrity, impact resistance, and long-term durability under demanding operating conditions.
  • Fully Serrated Flanges: Features fully serrated flange faces to enhance gasket grip and sealing reliability, minimizing the risk of leakage under thermal and mechanical stresses.

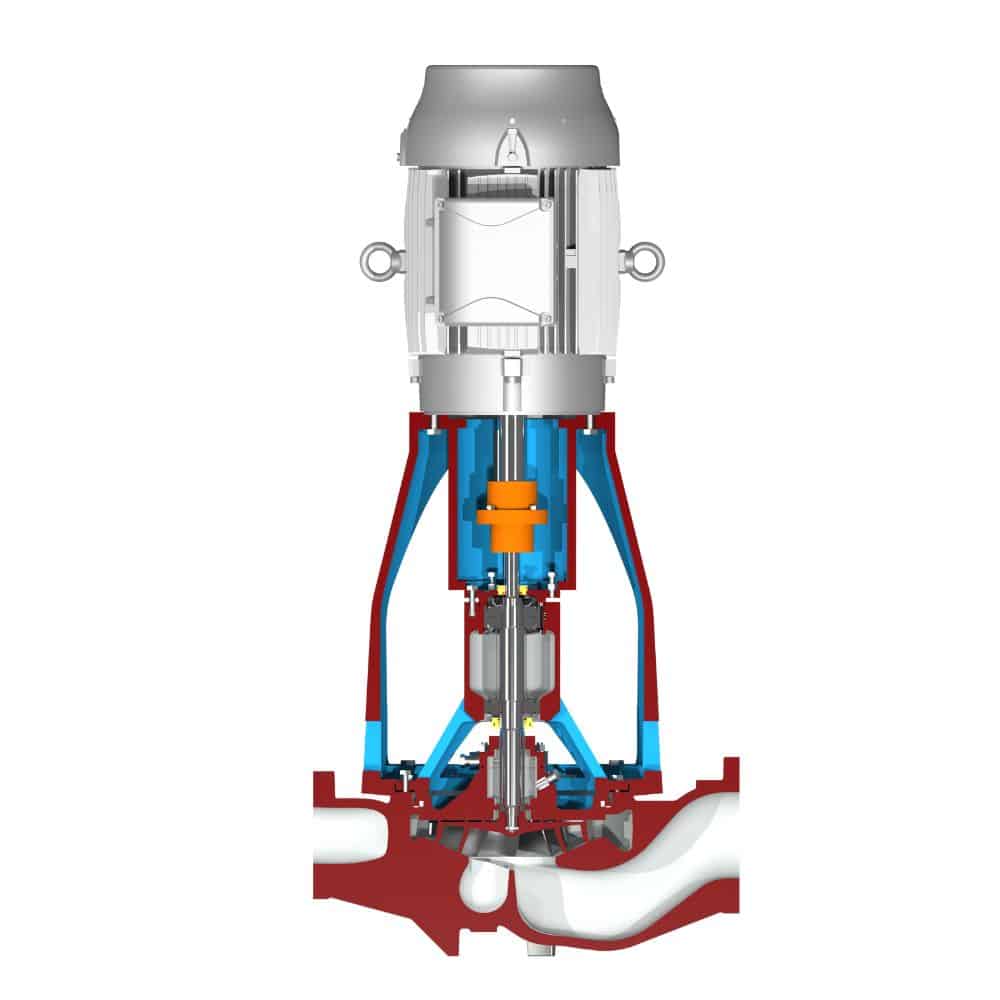

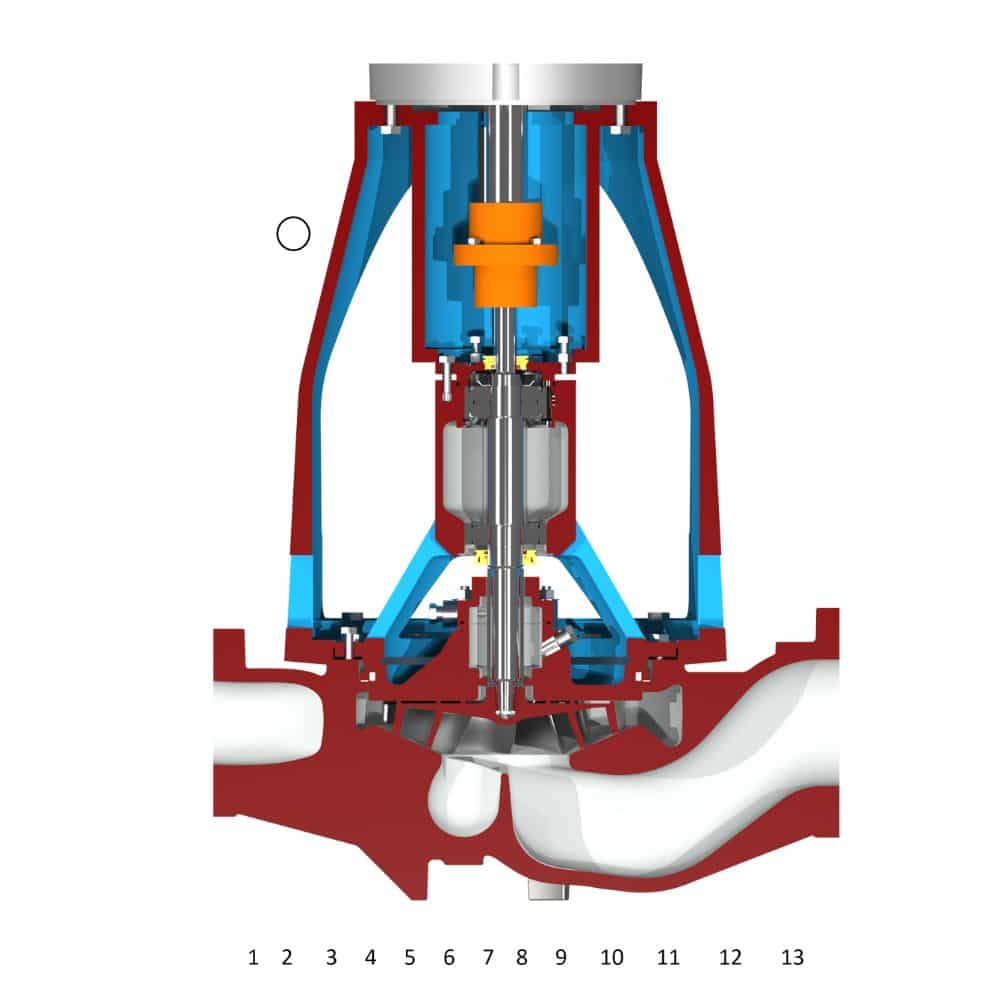

Pump Cross-Section

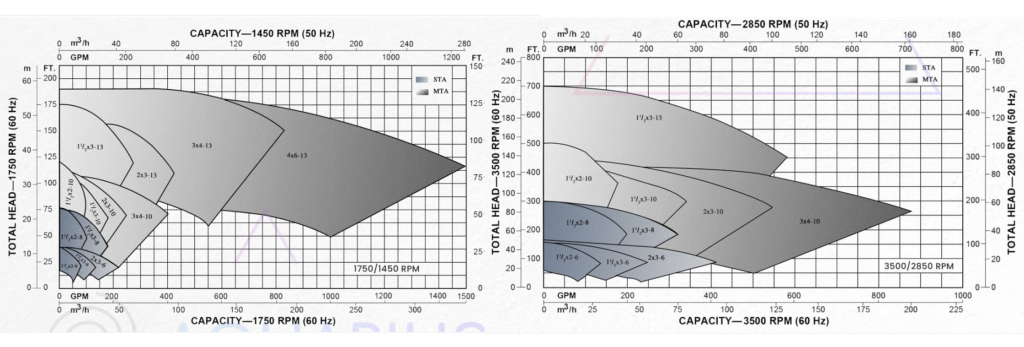

Performance Curve



Specification 2 Pole Motor 4 Pole Motor
Capacity Up to 1,400GPM (318m³/h) Up to 875GPM (200m³/h)
Head Up to 187ft (57m) Up to 700ft (214m)
Temperature Up to 500°F (260°C) Up to 500°F (260°C)
Pressure Up to 375PSIG (2,586KPa) Up to 375PSIG (2,586KPa)

Application

  • Condensate Return:Designed for efficient recovery and transfer of steam condensate in thermal systems.
  • Acid Unloading:Suitable for safe and controlled transfer of corrosive acids from storage to process units.
  • Monomer/Polymer Transfer: Engineered for the reliable handling of monomers and polymers in chemical manufacturing.
  • Liquid Nitrogen:Capable of managing cryogenic temperatures for liquid nitrogen transfer in industrial applications.
  • Liquid Ammonia:Built to handle the specific challenges of liquid ammonia transfer under pressurized conditions.
  • Caustic Transfer: Ideal for transferring caustic solutions in demanding chemical process environments.
  • Reflux and Light Tower Bottoms:Suited for continuous operation in distillation systems handling reflux and tower bottoms.
  • Waste Acid Recovery:Efficiently processes waste acid streams for recovery and reuse in closed-loop systems.
  • Pickle Liquor Circulation:Designed for consistent circulation of pickle liquor in metal surface treatment lines.
  • Chilled Water:Optimized for chilled water circulation in HVAC and industrial cooling systems.
  • Filter Feed: Ensures steady and reliable feed of liquid to filtration units in treatment and processing systems.

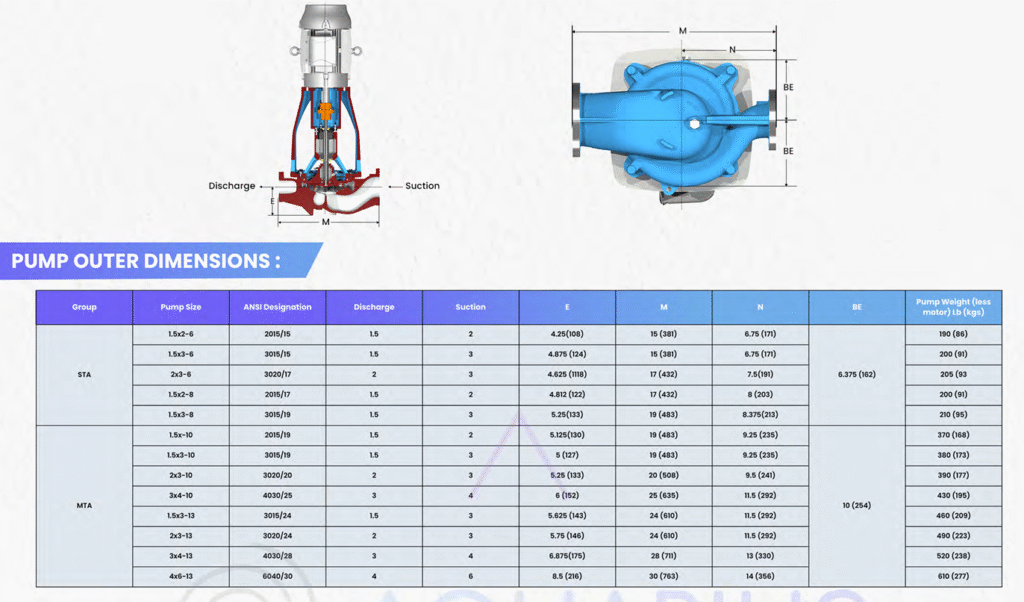

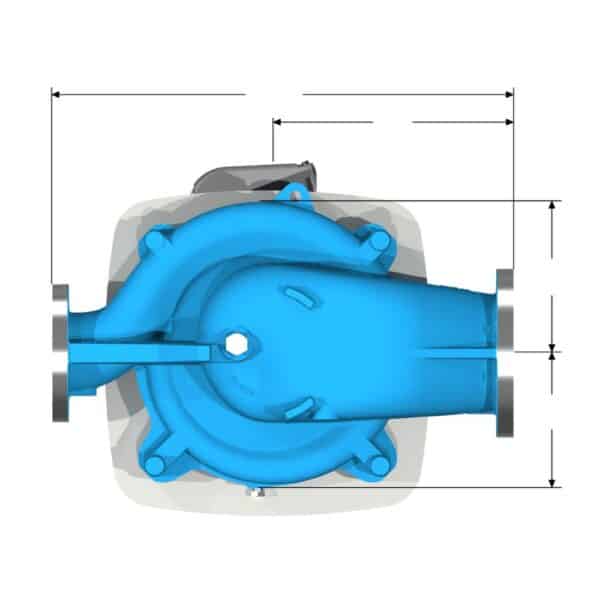

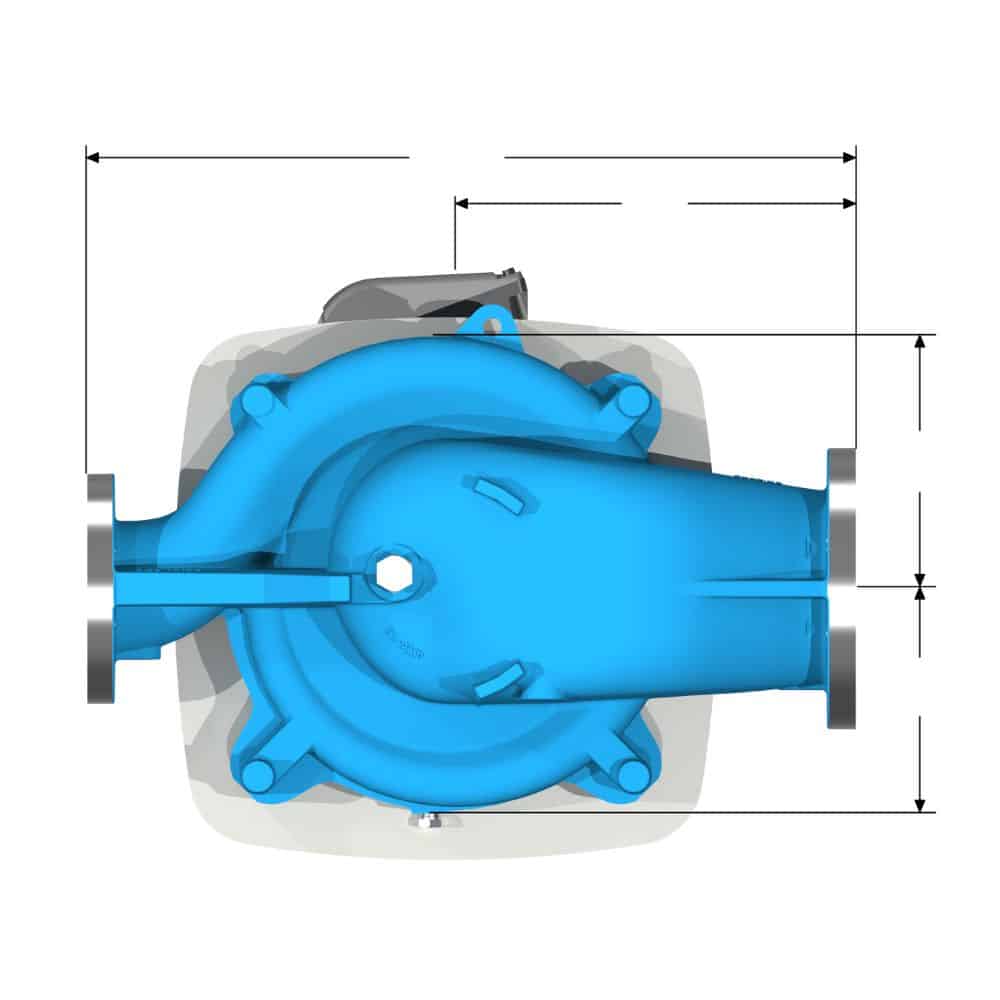

Pump Sizes

...
