Aquarius

AQUARIUS-PUMPING-SOLUTIONS

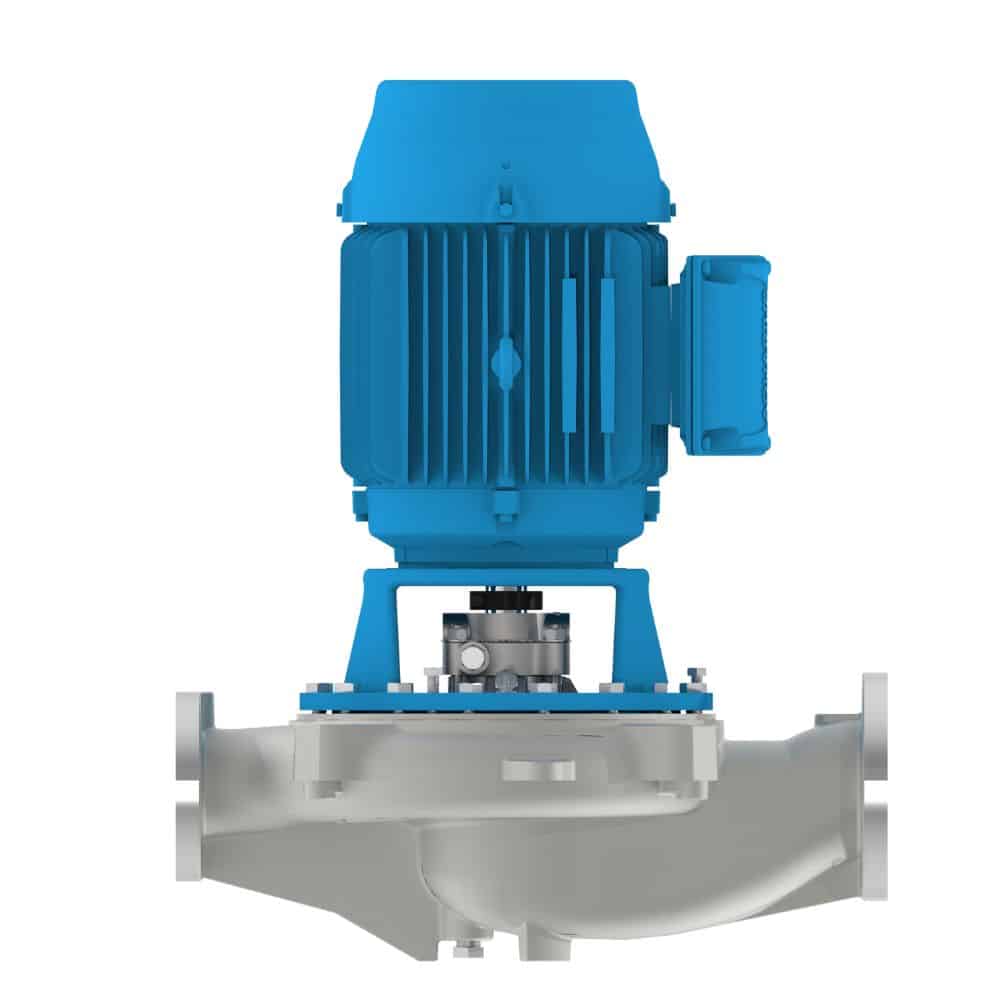

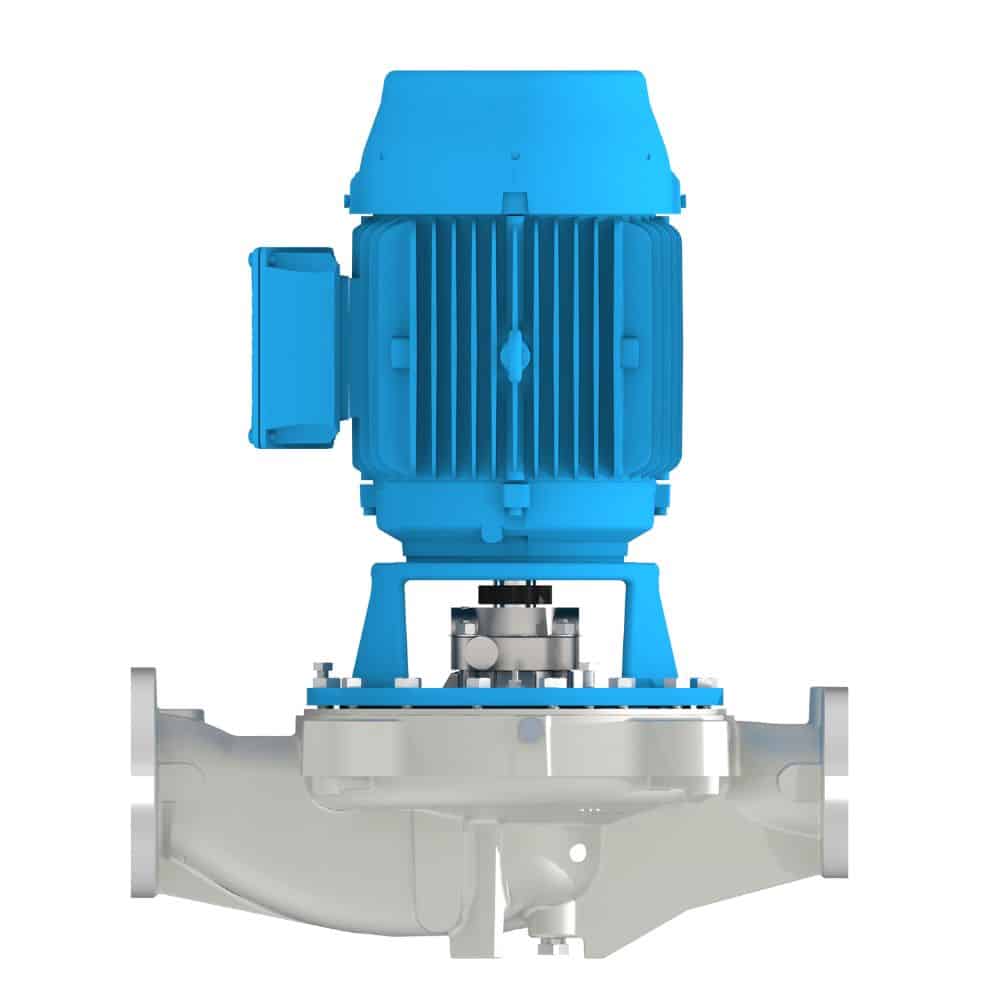

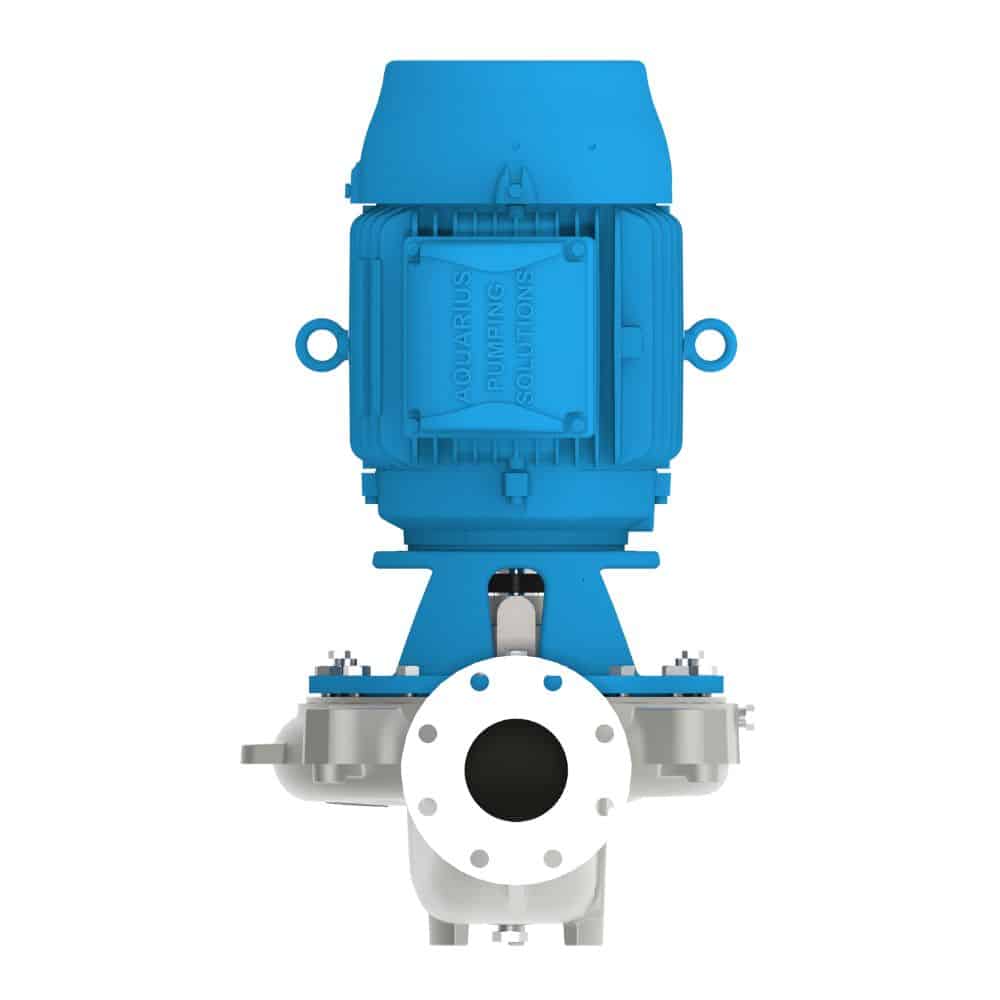

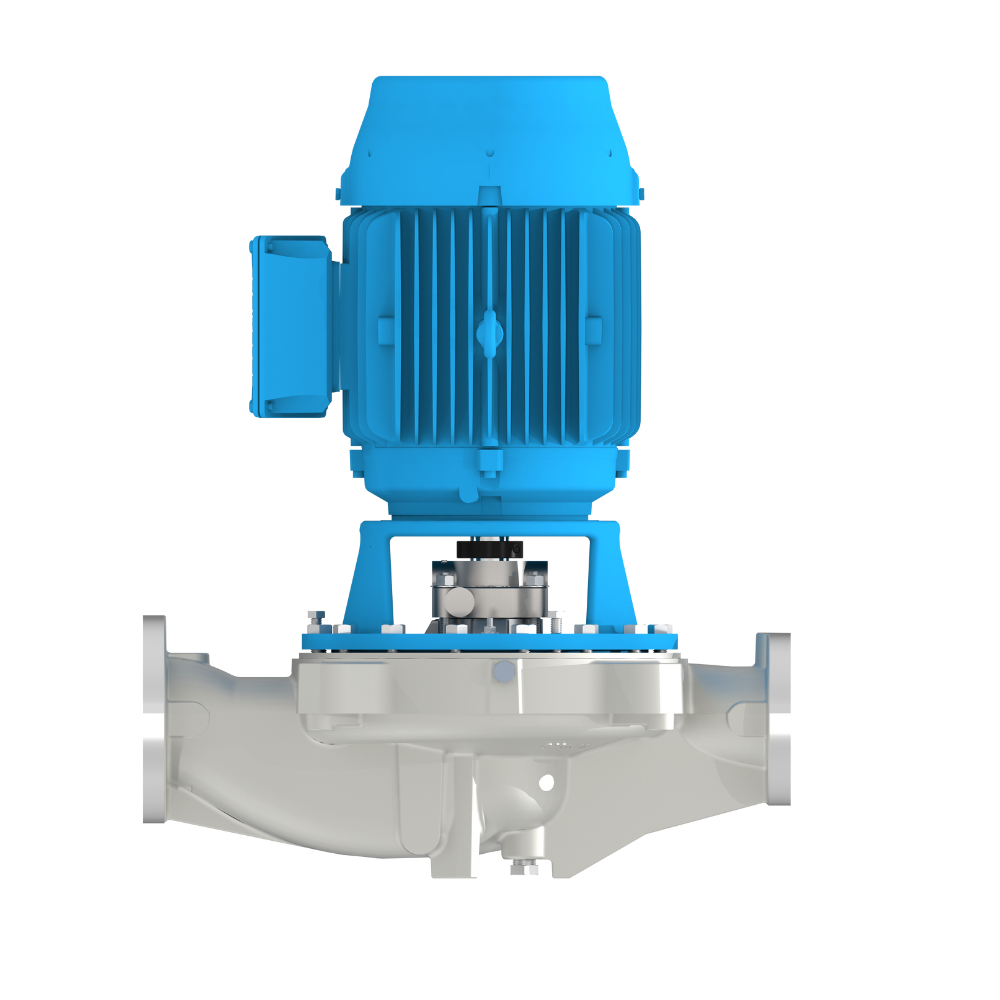

A996-CC Series

ANSI Vertical In-Line Centrifugal Chemical Process Pump

Aquarius A996 Series comply with ASME/ANSI B73.2M Standard Vertical In-Line Volute Casing Design.

Aquarius A996 Series is Directly interchangeable with reputed ITT Goulds© 3996 Series and many other ANSI Pump Manufacturers’ ANSI Vertical-Inline Pump Series.

Aquarius A996 Vertical In-Line Pump Series can be used in variety of Low on installation space Process Applications as it is having options in MOC of wetted parts like Carbon Steel, SS316, Cd4MCuN, Alloy20, Monel, Nickel, Hastelloy C276, Titanium, etc.

Various industries like Petrochemical, Chemical, Primary Metal, Pharma, Food & Beverages, etc. can use Variety of Sealing options and All API Sealing Plans in Aquarius A996 Vertical In-Line Process Pump Series.

A196 series ANSI Centrifugal pumps need enough space for installation and it requires pipe alignment work on the field, for eliminating all these issue Aquarius A996 Vertical In-Line Pumps are Customer’s the most preferred choice.

Category:

Specifications :

  • Capacities up to 1400 GPM (318 m3/h)
  • Heads up to 700 feet (213 m)
  • Temperatures up to 500° F (260° C)
  • Pressures up to 375 PSIG (2586 kPa)



Pump Design Features :

  • Accommodate in very small space directly in the pipeline as Valve
  • Eliminates Pump alignment work in the field
  • Lower Pump Installation Cost
  • Fully Open Impellers
  • Highly Engineered Seal Chambers
  • Variety of Mechanical Seals’ Compatibility
  • Dynamic Sealing option available
  • Premium Severe Duty Bearings
  • Ease of Maintenance
  • Back Pull-out Design
  • External Impeller Adjustment
  • Maximum Interchangeability

Safety Features :

  • Heavy Duty Casings are designed with higher wall thickness.
  • All Pressure Retaining Components are 100% Hydrostatic Tested.
  • Coupling Guards comply with ANSI B15.1 Standard.
  • Optional : Shaft Guard on Adaptor.
