Specifications
Specifications :
- Capacities to 284 m3/h (1250 GPM)
- Heads to 131 m (430 feet)
- Temperatures to 260° C (500° F)
- Pressures to 1999 kPa (290 PSIG)
- Effective static lift to 6 m (20 feet)

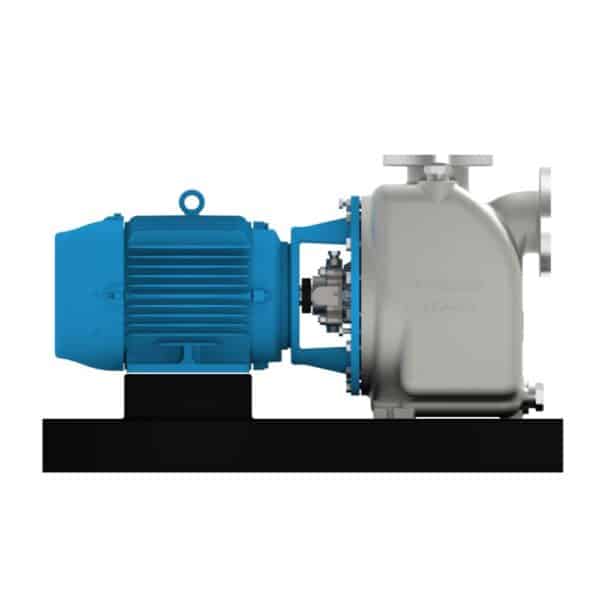

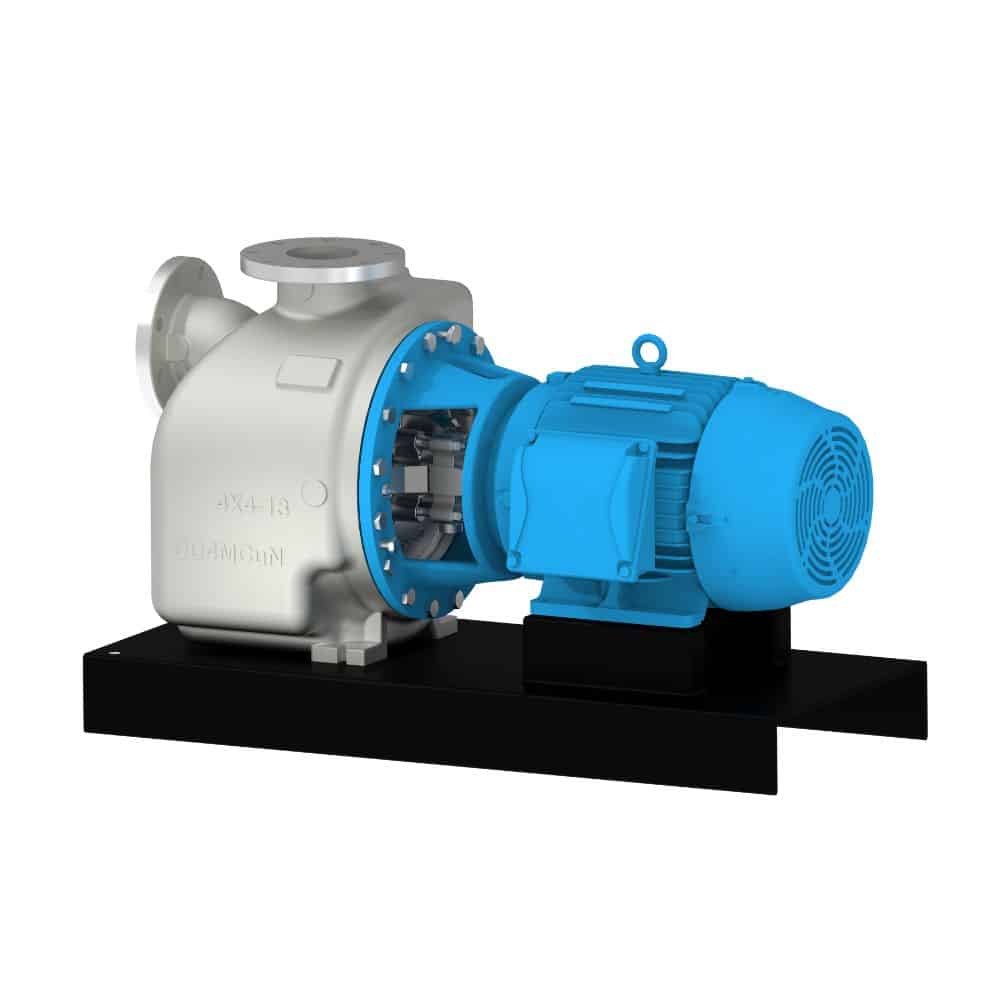

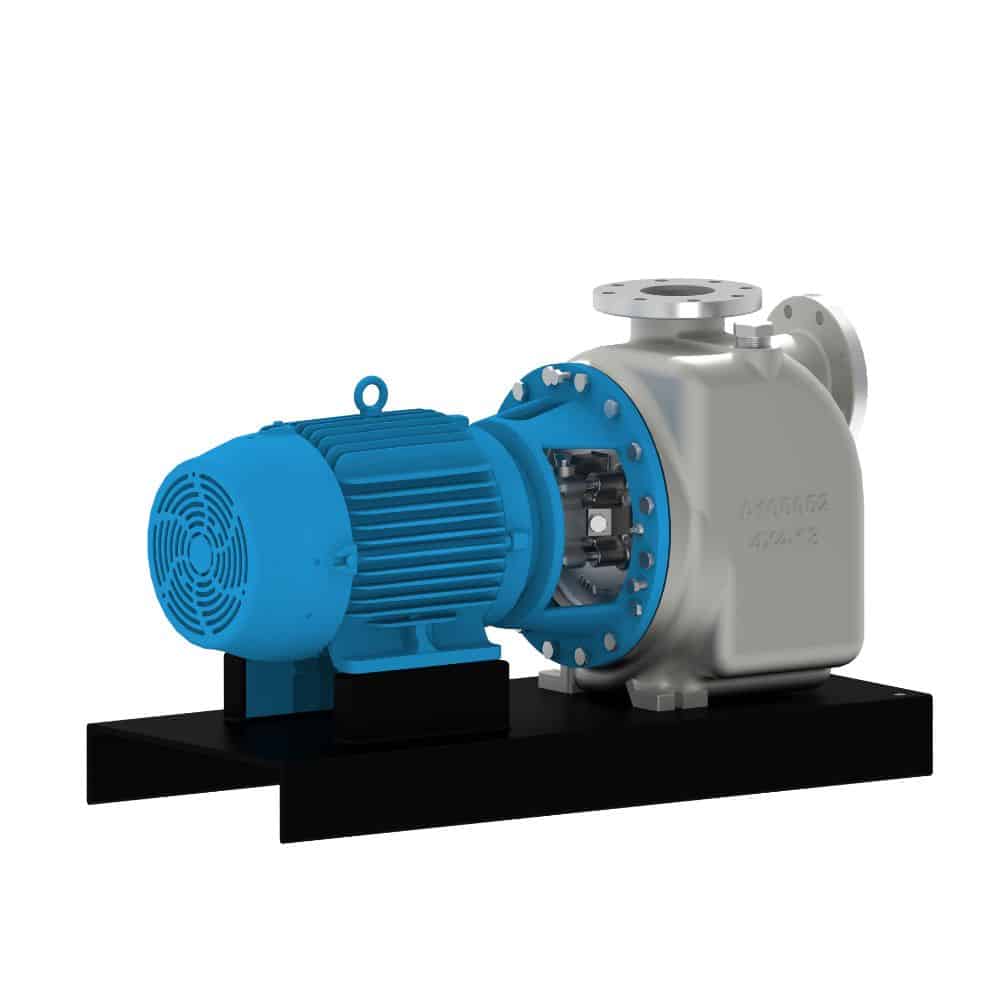

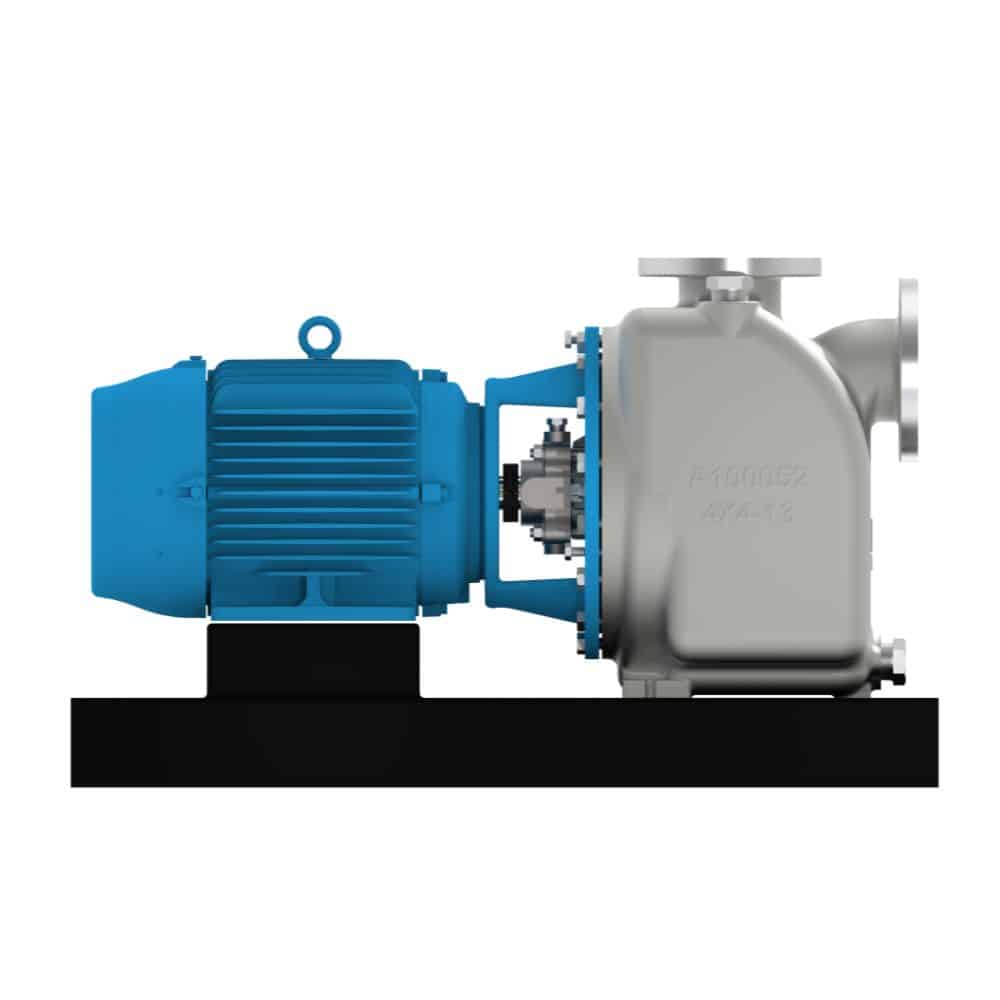

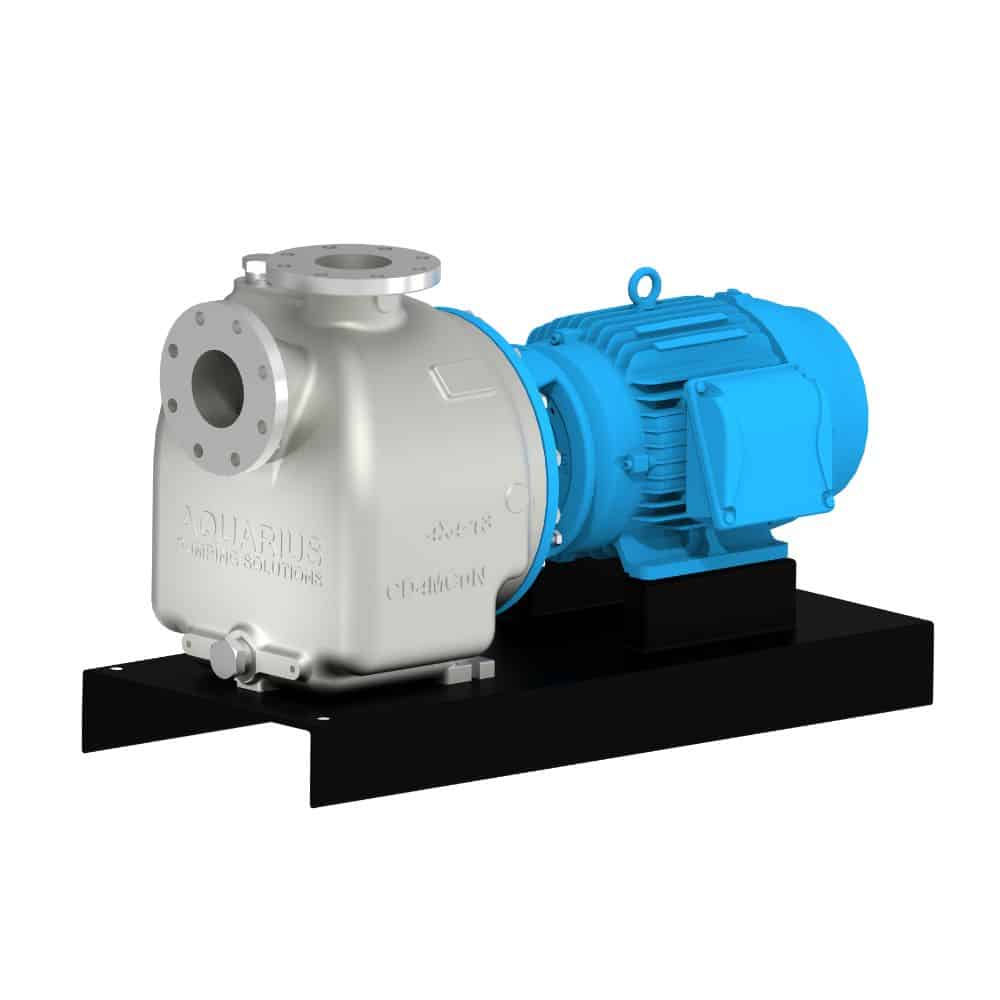

Close Coupled Pumps

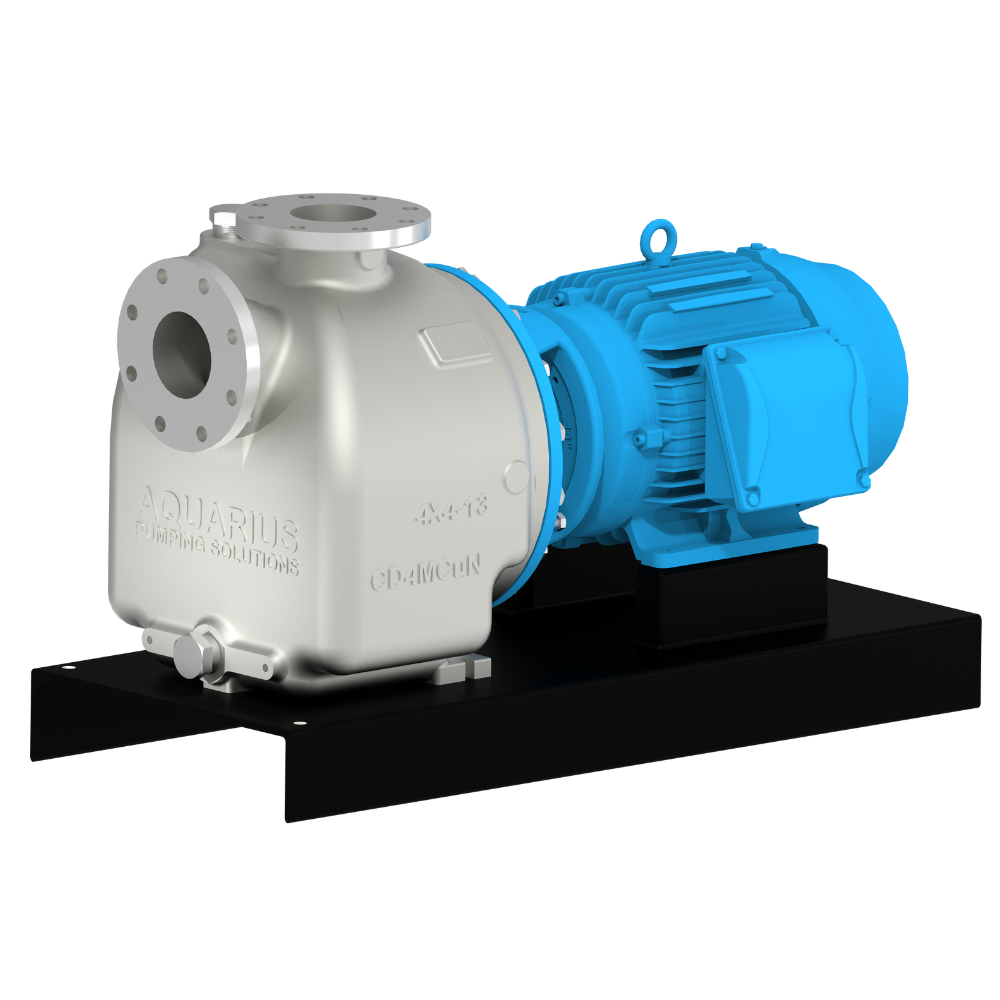

A796-CC SERIES
Aquarius A796 Series comply with ASME/ANSI B73.1M Standard Self-Priming Casing Volute Design.
Aquarius A796 Series is Directly interchangeable with reputed ITT Goulds© 3796 Series and many other ANSI Self-Priming Pump Manufacturers’ ANSI Self-Priming Pump Series.
Aquarius A796 Self-Priming Series can be used in variety of Self-Priming Process Applications as it is having options in MOC of wetted parts like Carbon Steel, SS316, Cd4MCuN, Alloy20, Monel, Nickel, Hastelloy C276, Titanium, etc.
Various industries like Petrochemical, Chemical, Primary Metal, Pharma, Food & Beverages, etc. can use Variety of Sealing options and All API Sealing Plans in Aquarius A796 Self-Priming Process Pump Series.
A196 series ANSI Centrifugal pumps need to be primed by removing air and filling with liquid before they work. This is easy if the pump is underwater or if the liquid is above it, but requires extra steps if the pump has negative suction pressure.
Aquarius A796 ANSI Self-Priming Chemical Process Pump Casing has a built-in chamber that always keeps enough liquid to stay primed.
Aquarius A796 ANSI Self-Priming Chemical Process Pump Casing’s one-piece design includes both priming and air separation features. This means it works efficiently on its own without needing extra priming systems.
- Specifications
- Pump Design Features
- Pump Cross-Section
- Performance Curve
- Application
- Pump Sizes
- Literature
Pump Design Features
Extended Pump Life :
- One-piece casing with integral priming and air separation (no external priming chamber or air separator required)
- No suction check valve required
- Rapid priming time
- Positive retention of pumpage under siphon conditions
- Self-purge of vapors
