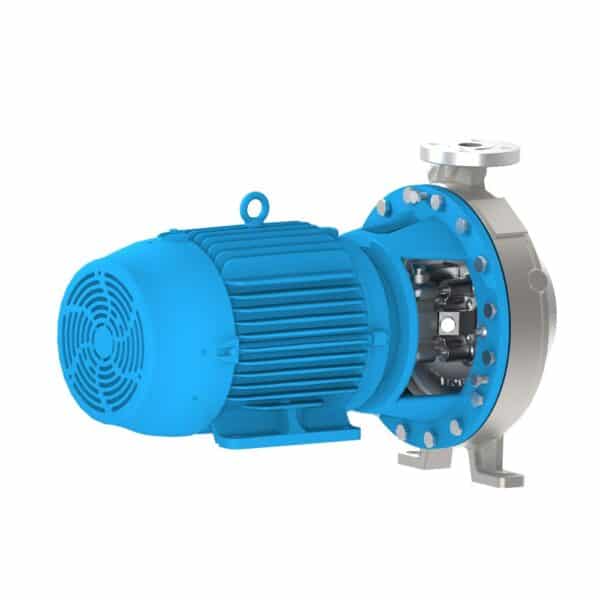

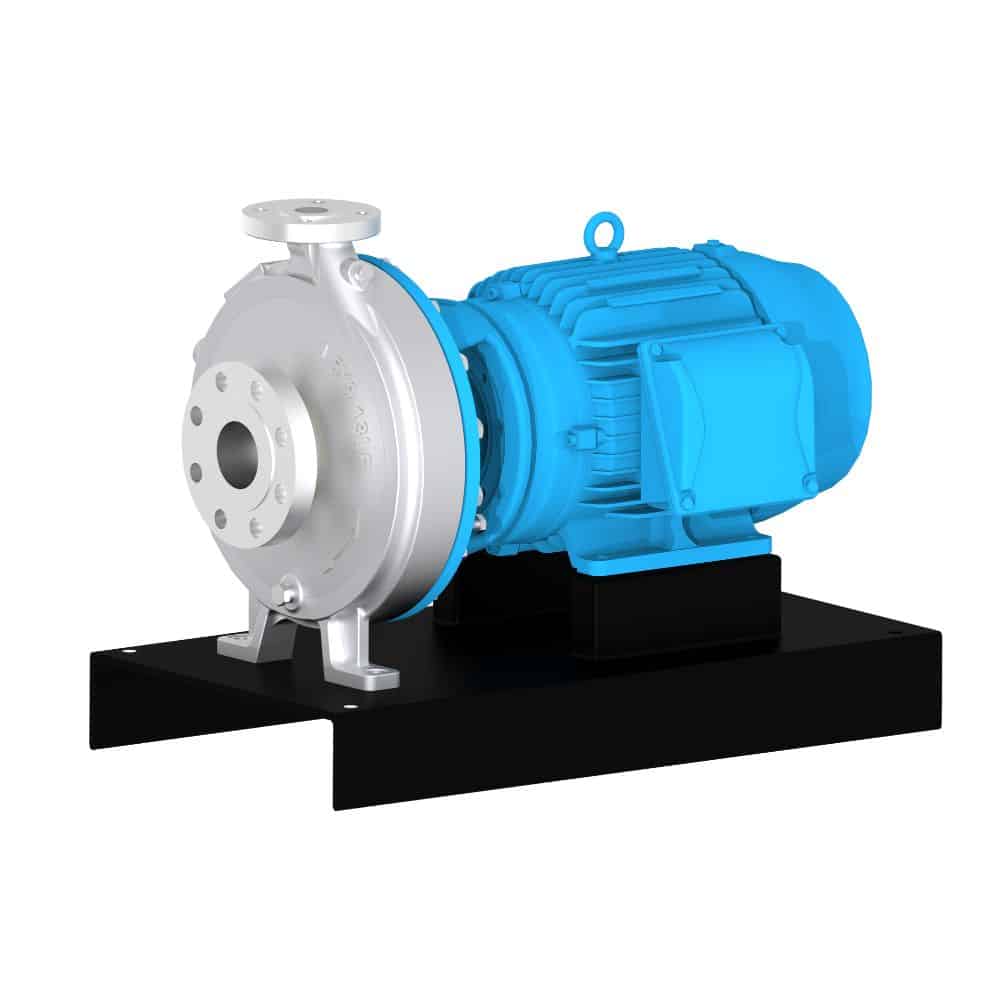

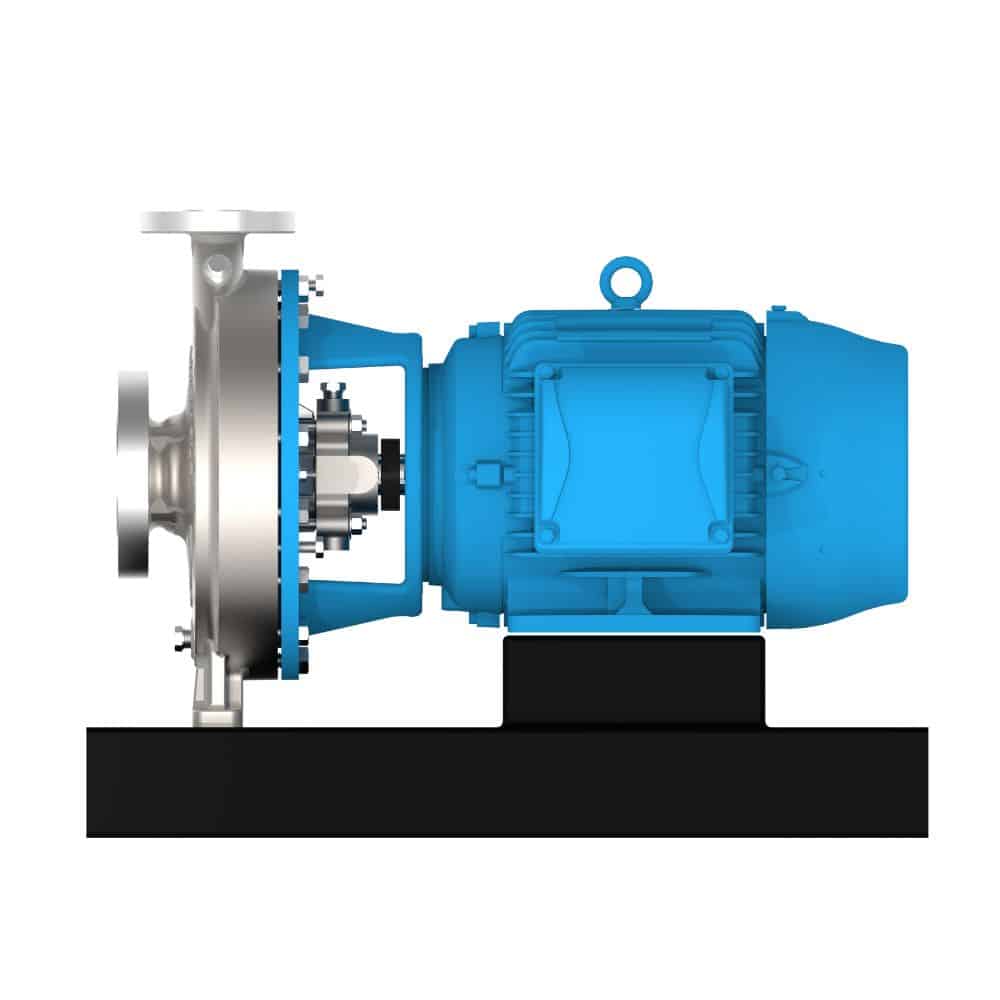

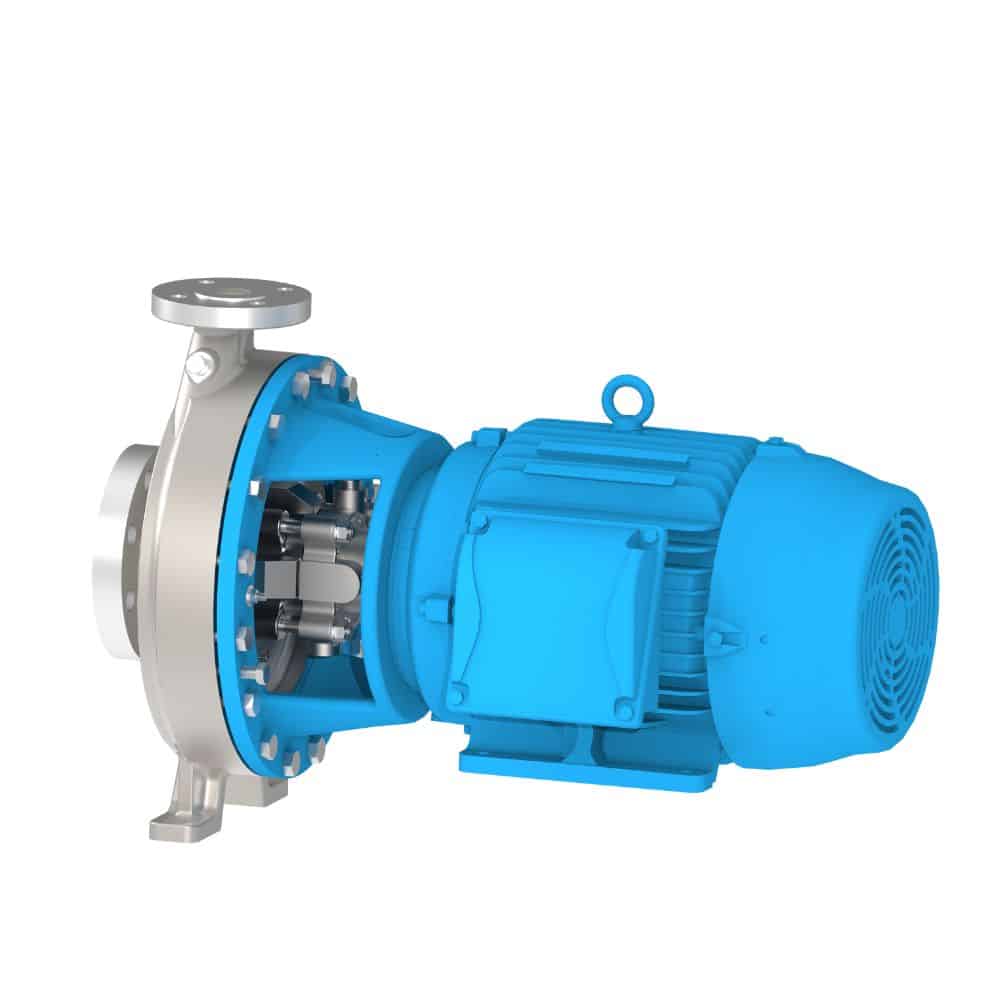

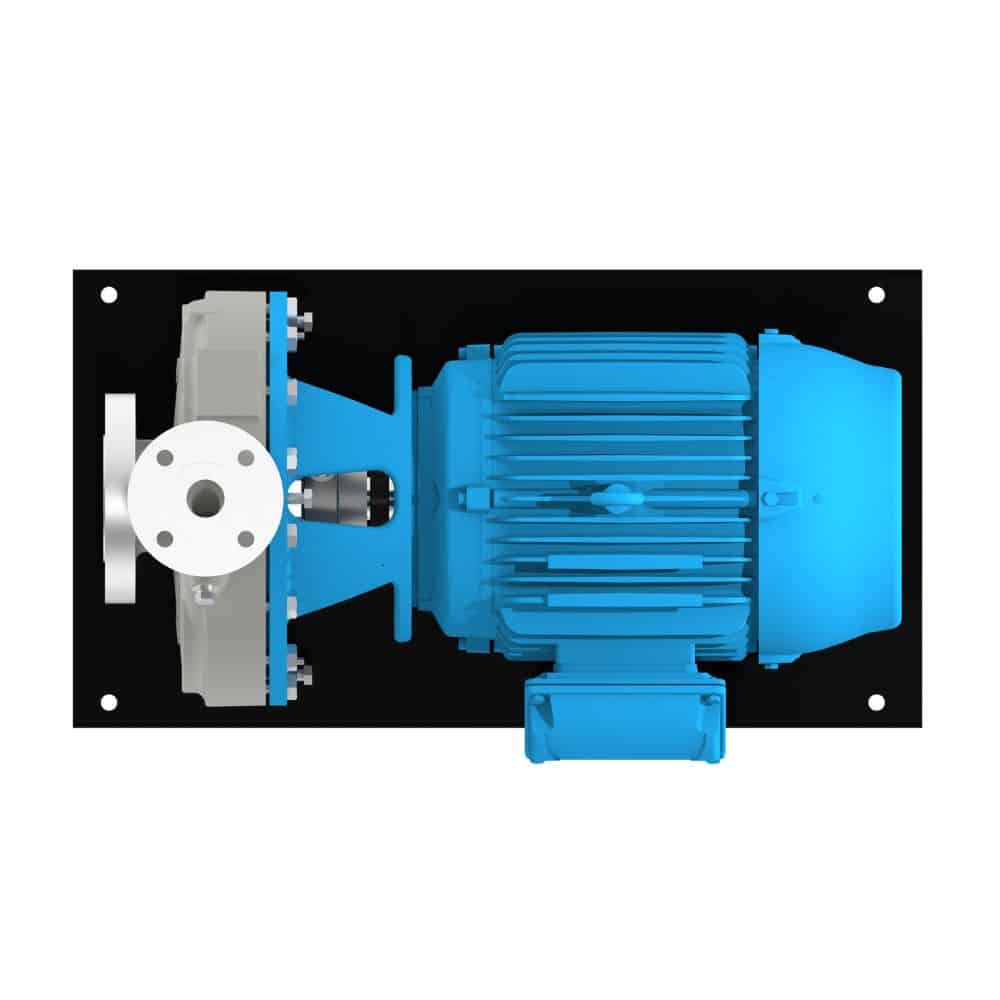

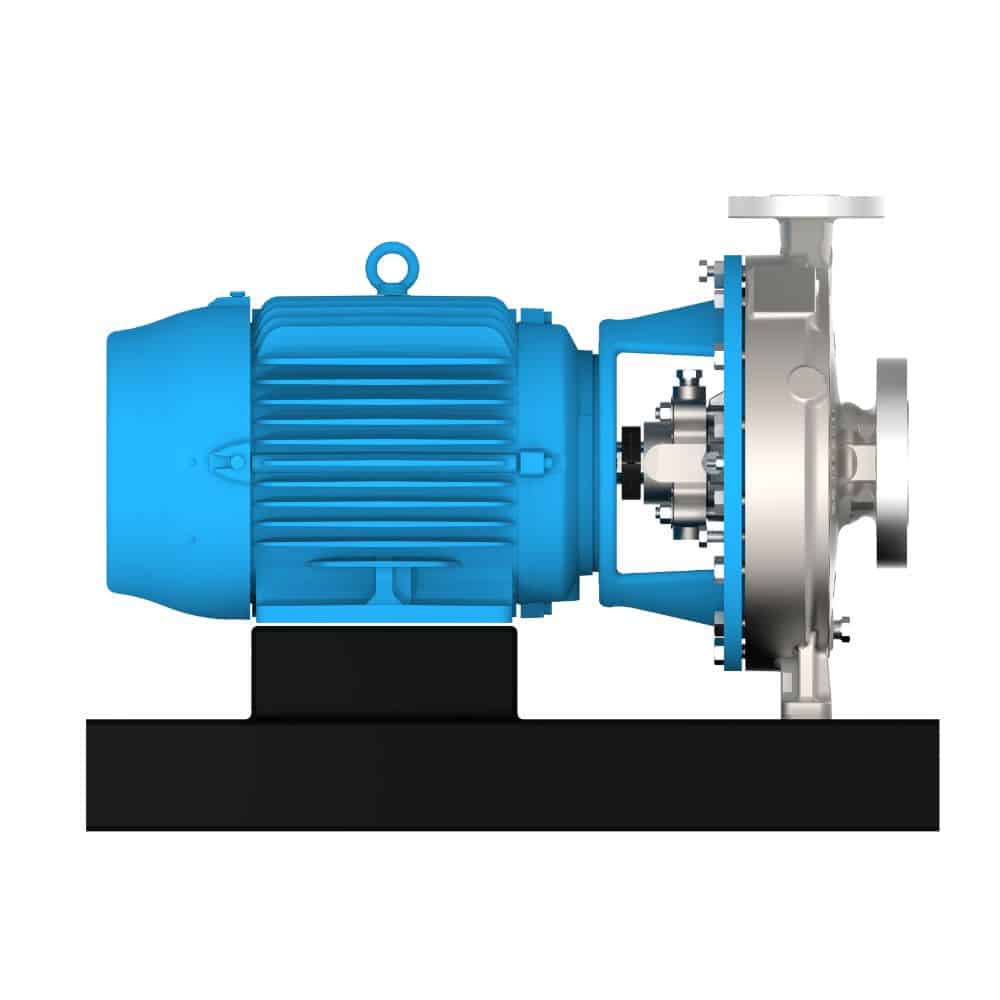

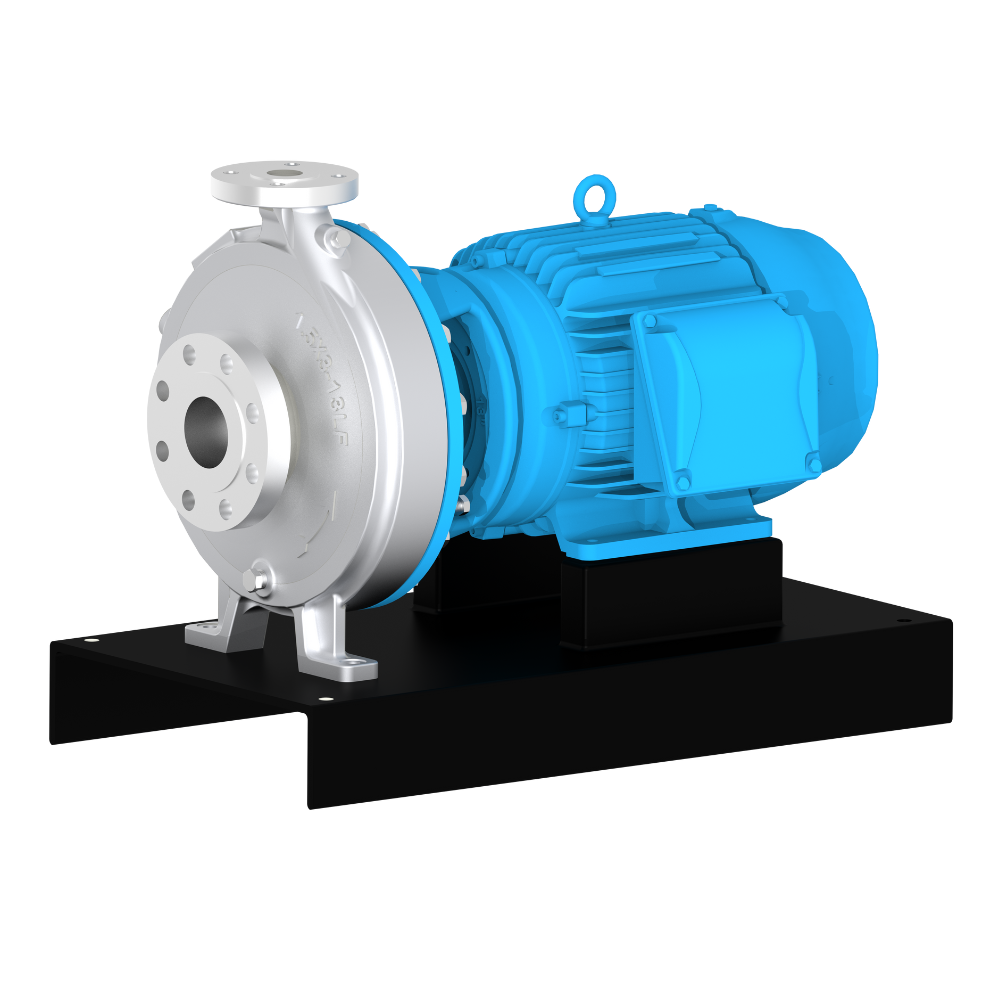

A196-LF-CC Series

ANSI End-Suction Low-Flow Process Pump

Aquarius A196-LF Series comply with ASME/ANSI B73.1M Standard Open Impeller Design.

Aquarius A196-LF Series is Directly interchangeable with reputed ITT Goulds© 3196LF Series and many other ANSI Pump Manufacturers’ ANSI Pump Series.

Aquarius A196-LF Series can be used in variety of Low-Flow Process Applications as it is having options in MOC of wetted parts like Iron, Carbon Steel, SS316, Cd4MCuN, Alloy20, Monel, Nickel, Hastelloy C276, Titanium, etc.

Various industries like Petrochemical, Chemical, Primary Metal, Pharma, Food & Beverages, etc. can use Variety of Sealing options and All API Sealing Plans in Aquarius A196-LF Series Process Pumps.

For Low Flow Application, If we throttle regular centrifugal pump then Seal Chamber pressure and Axial Thrust on Bearings will increases and Seal-Bearings will fail in short period of time. Aquarius A196-LF Series pumps are having Circular Volute and Radial Vane Design to eliminate all above problems.

Category:

Specifications :

  • Capacities to 220 GPM (50 m3/hr)
  • Heads to 925 feet (282 m)
  • Temperatures to 700° F (371° C)
  • Pressures to 450 PSIG (3102 kPa)

Pump Design Features :

  • Fully Open Impellers
  • Extended Pump Life with help of Concentric (Circular) casing &
  • Radial vane impeller
  • Highly Engineered Seal Chambers
  • Variety of Mechanical Seals’ Compatibility
  • Dynamic Sealing option available
  • Hybrid Bearing Isolators
  • Premium Severe Duty Thrust Bearings
  • Optimized Oil-Sump Design
  • LTA Power End for High Load Applications
  • Engineered Pump Mounting Systems
  • High and Low Temperature arrangements are available
  • Ease of Maintenance
  • Back Pull-out Design
  • External Impeller Adjustment
  • Maximum Interchangeability



Safety Features :

  • Heavy Duty Casings are designed with higher wall thickness.
  • All Pressure Retaining Components are 100% Hydrostatic Tested.
  • Coupling Guards comply with ANSI B15.1 Standard.
  • Optional : Shaft Guard on Adaptor.



A196-LF Series Circular Volute Feature :

The A196 Low Flow Process Pump is designed to operate consistently at low flow rates featuring  a concentric (circular volute) casing with an open radial vane impeller to address hydraulic and mechanical problems at throttled low-flow conditions.

Circular Volute Casing :

  • Minimizes radical loads
  • Longer life for mechanical seals and bearing
  • Optimize efficiency and precision hydraulic control

A196-LF Open Radial Vane Impeller :

  • Reduce Vibrations, pulsations, and stress
  • Enhances vane strength
  • Reduce Axial Thrust and Optimize Seal Chamber’s Pressure
  • Increased longevity of Seals and Bearings
