Aquarius

AQUARIUS-PUMPING-SOLUTIONS

A196-CC Series

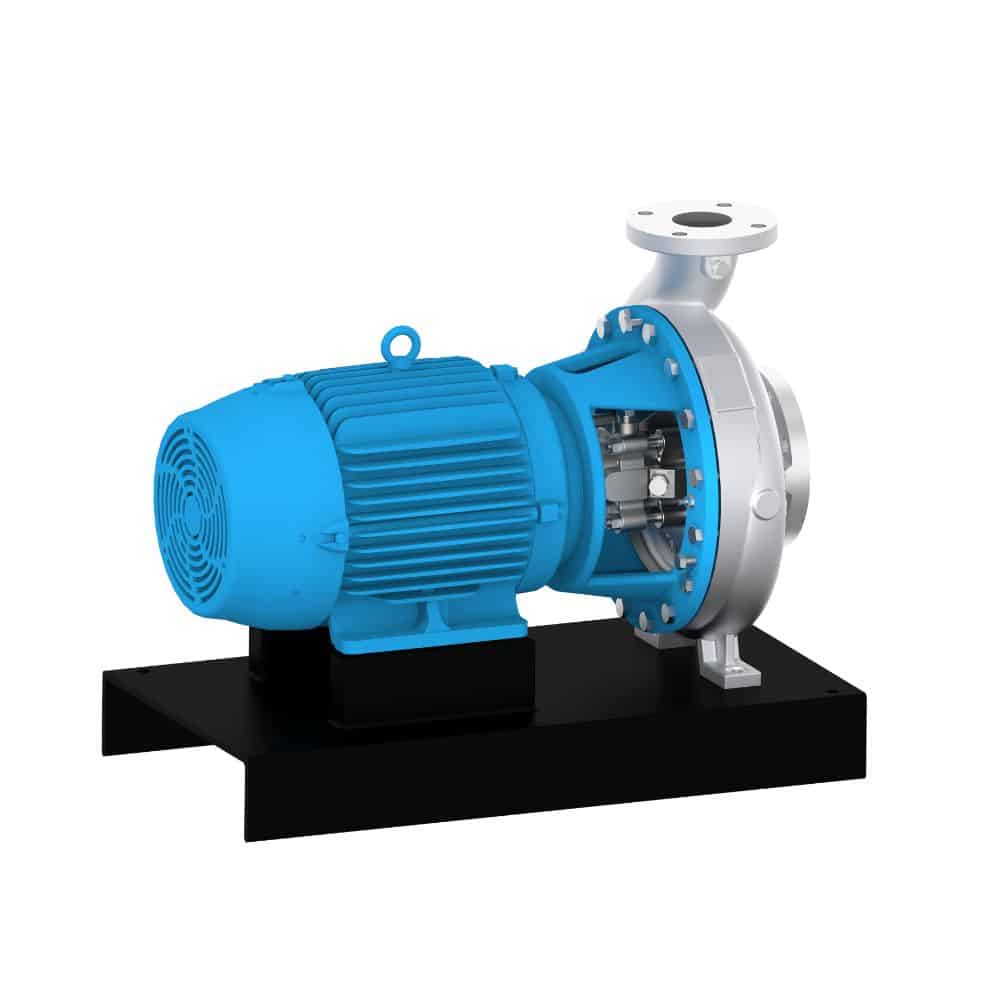

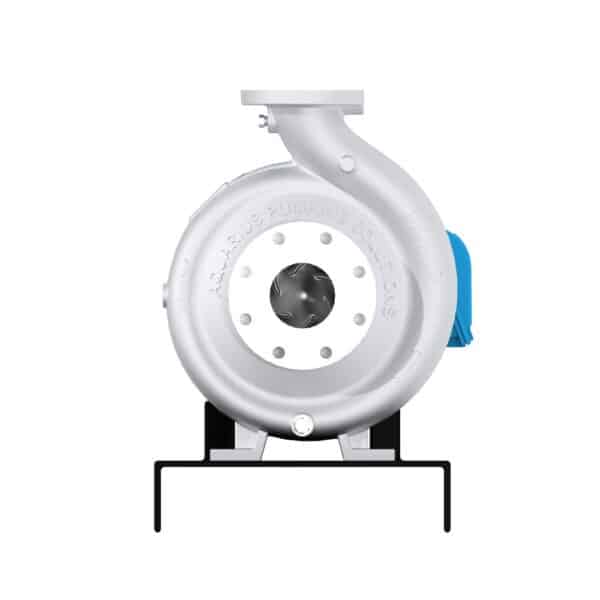

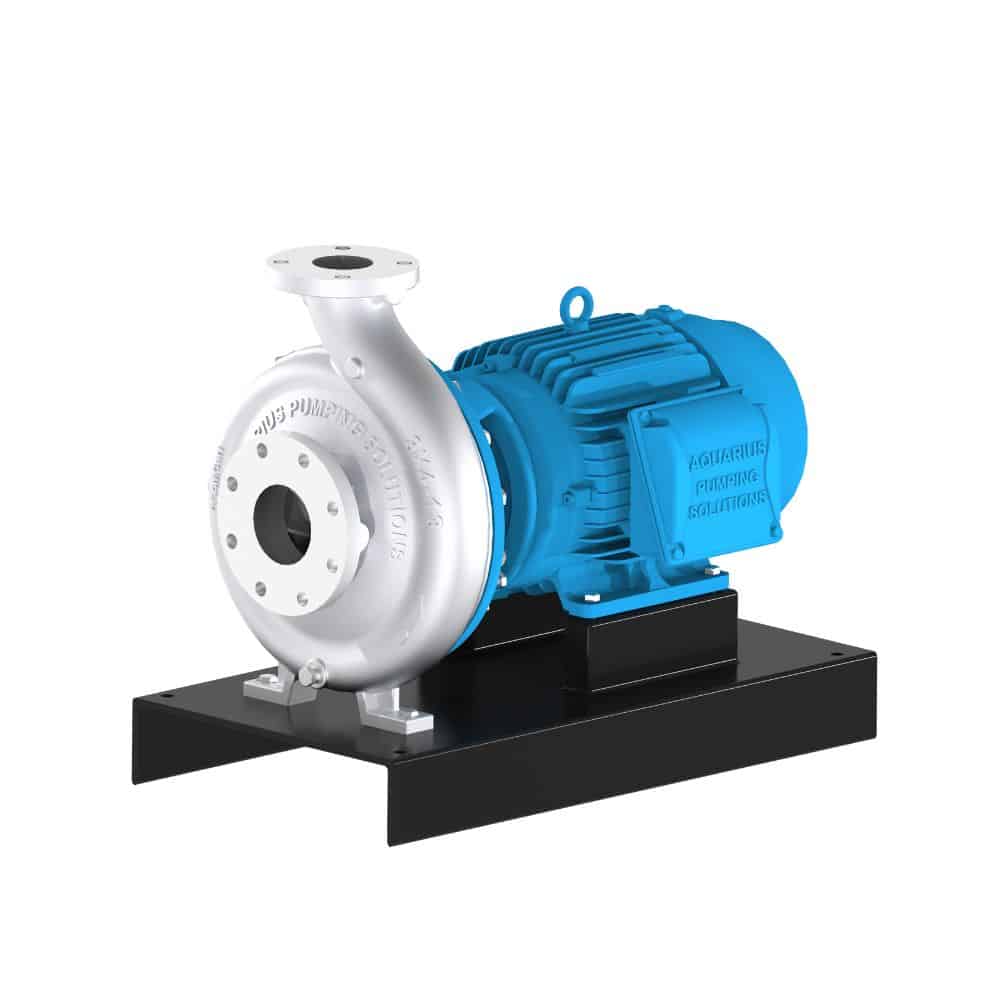

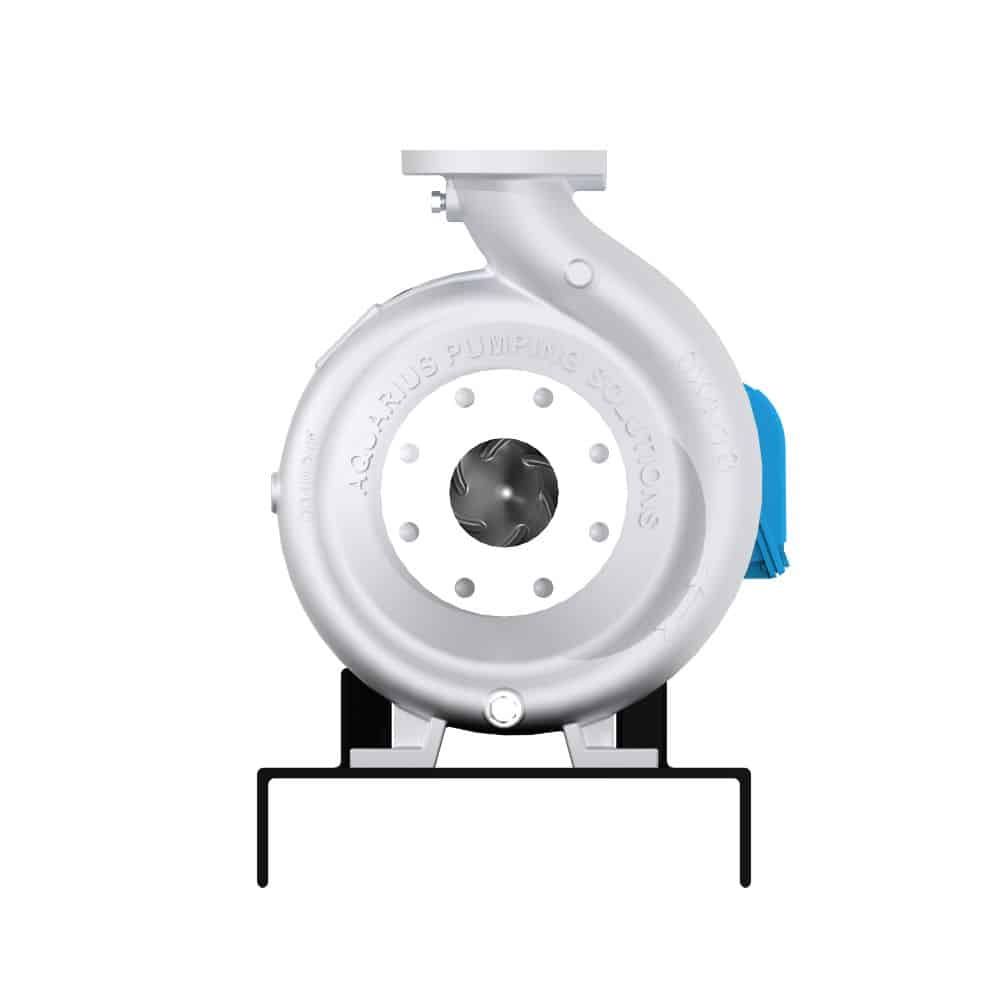

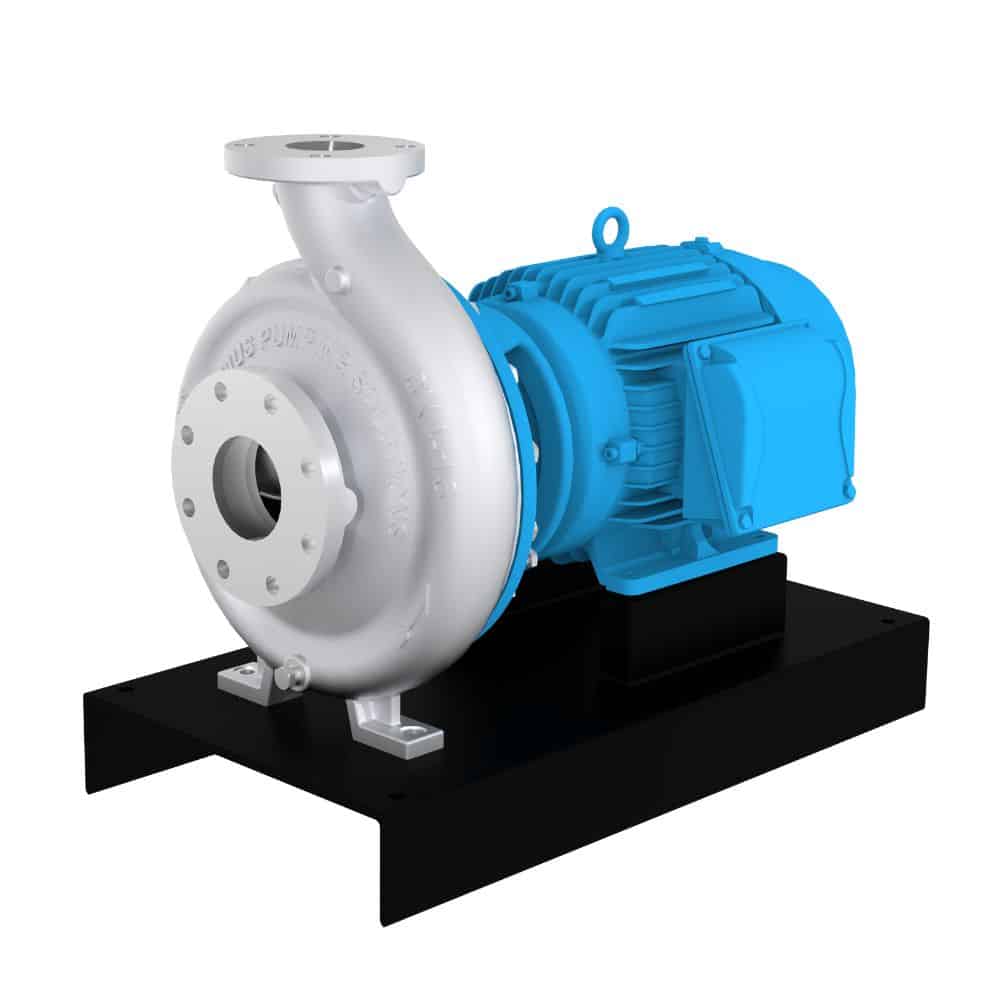

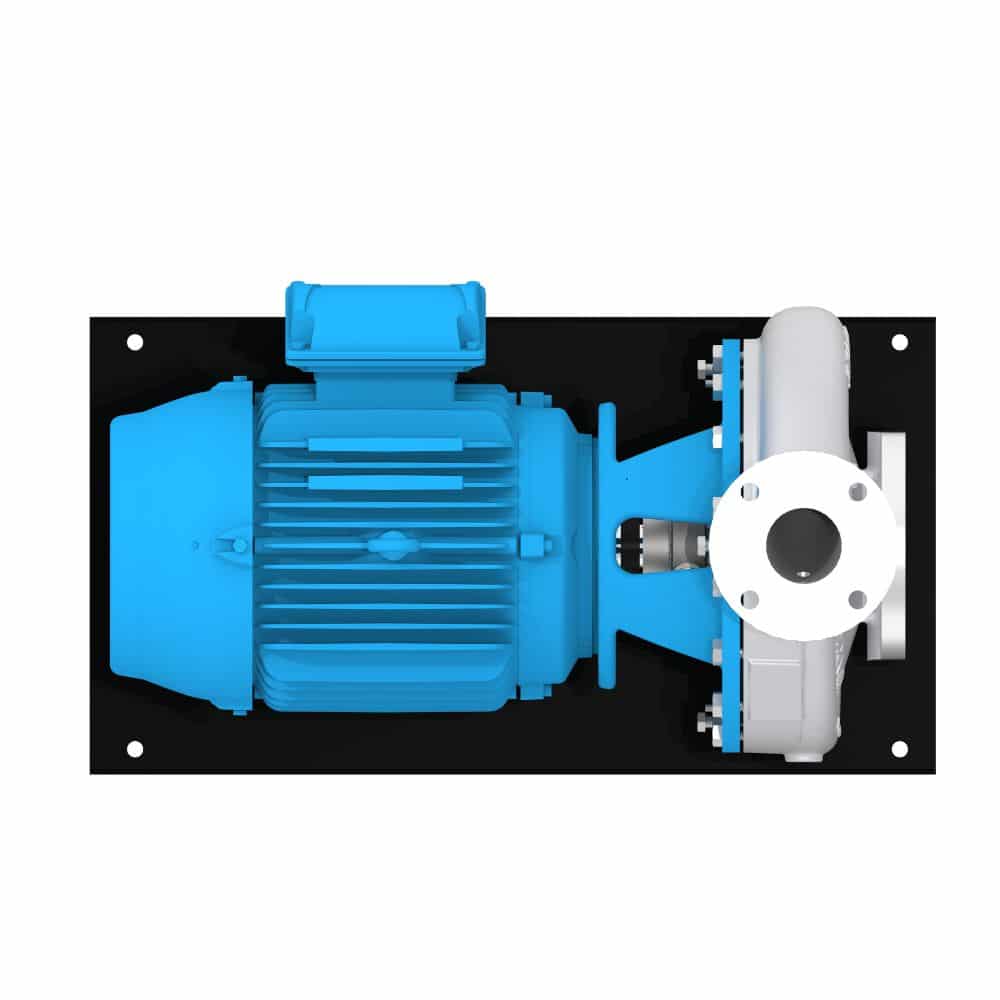

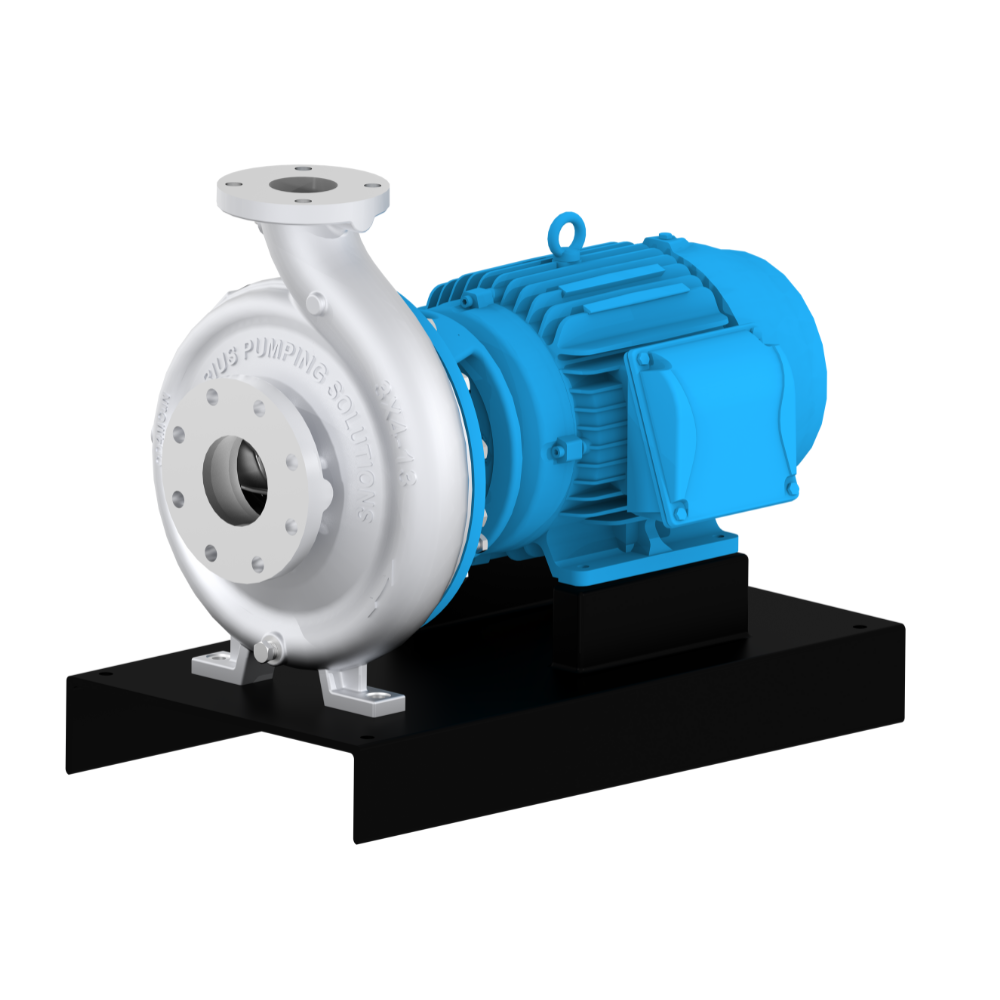

ANSI End-Suction Centrifugal Process Pump

Aquarius A196 Series comply with ASME/ANSI B73.1M Standard Open Impeller Design.

Aquarius A196 Series is Directly interchangeable with reputed ITT Goulds© 3196 Series and many other ANSI Pump Manufacturers’ ANSI Pump Series.

Aquarius A196 Series can be used in variety of Process Applications as it is having options in MOC of wetted parts like Iron, Carbon Steel, SS316, Cd4MCuN, Alloy20, Monel, Nickel, Hastelloy C276, Titanium, etc.

Various industries like Petrochemical, Chemical, Primary Metal, Pharma, Food & Beverages, etc. can use Variety of Sealing options and All API Sealing Plans in Aquarius A196 Series Process Pumps.

Category:

Specifications :

  • Capacity: up to 7000 GPM (1590 m3/h)
  • Head: up to 730 feet (223 m)
  • Temperature: up to 700° F (371° C)
  • Pressure: up to 375 PSIG (26 bar)



Pump Design Features :

  • Fully Open Impellers
  • Highly Engineered Seal Chambers
  • Variety of Mechanical Seals’ Compatibility
  • Dynamic Sealing option available
  • Hybrid Bearing Isolators
  • Premium Severe Duty Thrust Bearings
  • Optimized Oil-Sump Design
  • LTA Power End for High Load Applications
  • Engineered Pump Mounting Systems
  • High and Low Temperature arrangements are available
  • Ease of Maintenance
  • Back Pull-out Design
  • External Impeller Adjustment
  • Maximum Interchangeability
  • Optimum Hydraulic Performance with 50/60 Hz Coverage and 32 BEP/ sizes



Safety Features :

  • Heavy Duty Casings are designed with higher wall thickness.
  • All Pressure Retaining Components are 100% Hydrostatic Tested.
  • Coupling Guards comply with ANSI B15.1 Standard.
  • Optional : Shaft Guard on Adaptor.
